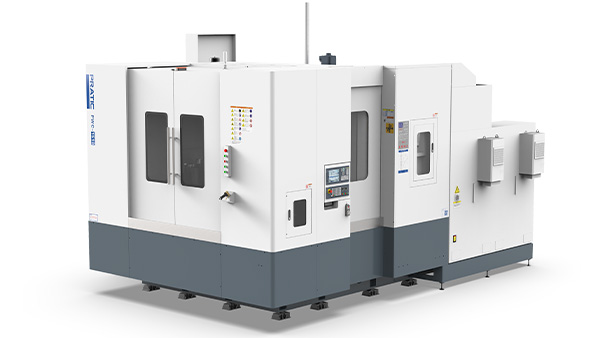

The Application of Large CNC Machining Centers in Extrusion Mold Processing

At present, we are exploring the application of new large-scale CNC machining centers in extrusion mold processing, improving the level of mold manufacturing technology in China, and promoting the development of extrusion molds. Due to the progress of the times and social development, the CNC machining technology and related equipment and equipment in China are also constantly developing and updating, with the development and automatic tool change technology being particularly evident, It plays an important role in promoting the domestic economic level and CNC technology.

Nowadays, the main CNC machining centers used have identified problems in the development of research based on the actual situation of automatic calibration. Relevant theoretical situations have been investigated and discussed in depth, and an effective theoretical system has been developed to maximize the benefits of automatic tool changing equipment. The application of technology in CNC automation has been continuously promoted. In China, current CNC machining centers use dust collection devices.

It includes a main casing and a collection box, which are used for fixing the motor at the center of the outer casing, and a rotating rod that can be rotatably installed at the output end of the motor, thus connecting with the lower end of the rotating rod. The insertion interface is fixed on one side of the lower end, and the interface is inserted into the hopper. One side of the collection box is fixedly installed with a fixed rod, and one side of the fixed rod has an inlet, which is connected to the input end of the fan through a transmission pipe. Nowadays, the method of rotary scanning is adopted, To sweep the dust on the integrated circuit board.

The current machine tool, more specifically the vertical CNC machining center, includes and is connected to a workbench spindle. The centerline of the spindle body is located in a horizontal plane, and the workbench is marked with claws in relative positions. The tip of the tailstock is the center of the core body. The current new model solves the problem of existing CNC machining centers, which cannot accurately locate each surface when processing polyhedral components, When processing each face of a polyhedron, the positioning accuracy is improved.
