What Is a Pulley?

Pulleys are among the oldest and most versatile mechanical devices, used for centuries to simplify lifting, moving loads, and transmitting power. From ancient construction projects to modern industrial machinery, pulleys play a critical role in reducing the effort required to perform work. But what exactly is a pulley, and how does it achieve this mechanical magic? In this in-depth guide, we’ll explore the definition, components, types, working principles, and real-world applications of pulleys, uncovering their timeless relevance in engineering and daily life.

Understanding the Basics of a Pulley

What Is a Pulley?

A pulley is a wheel with a grooved rim that holds a rope, cable, or belt, allowing it to change the direction of a force or multiply mechanical advantage when lifting or moving objects. It operates on the principle of mechanical advantage, which reduces the input force needed to overcome a load. Pulleys can be used individually or in combination (as a pulley system) to achieve different levels of force multiplication and directional control.

Core Functions of a Pulley

Force Direction Change: Enables lifting objects by pulling downward (e.g., a flagpole pulley lets you raise a flag by pulling down on the rope).

Mechanical Advantage: Reduces the force required to lift a load, though this may increase the distance over which the force must be applied.

Power Transmission: Transmits motion between shafts in machinery (e.g., in engines or conveyor belts).

Key Components of a Pulley System

1. Pulley Wheel (Sheave)

Design: A cylindrical wheel with a V-shaped or U-shaped groove to hold the rope/cable, preventing it from slipping off.

Materials: Typically made of metal (steel, aluminum) for durability, or plastic/nylon for lightweight applications and reduced friction (e.g., in home gyms).

Bearings: Some pulleys have built-in bearings (ball or roller bearings) to minimize friction and allow smooth rotation.

2. Rope/Cable/Belt

Function: Transmits the force from the input (e.g., a person pulling) to the load.

Types: Ropes (natural/synthetic fibers) for low-load applications, steel cables for heavy-duty use, and belts (flat, V-belts, timing belts) in machinery for power transmission.

3. Axle

Support: Holds the pulley wheel in place, allowing it to rotate freely.

Mounting: Fixed to a structure (for fixed pulleys) or attached to the load (for movable pulleys).

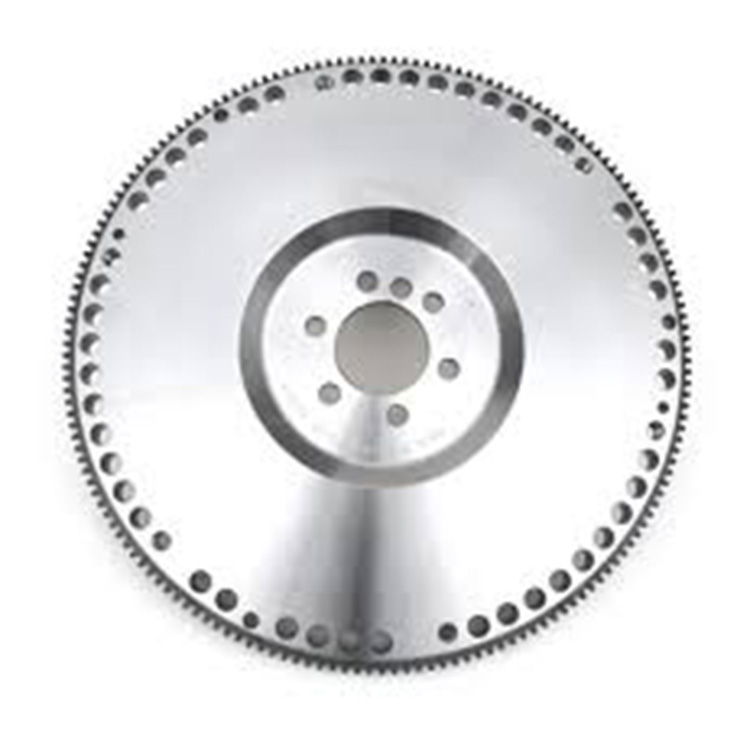

Aluminum Die Casting Parts Customized Drawing Design Pulley Flywheel

Types of Pulleys and Their Unique Mechanisms

1. Fixed Pulley (Single Fixed Pulley)

Design: The pulley is attached to a stationary point (e.g., a ceiling or beam), and the wheel does not move when the rope is pulled.

How It Works:

- Changes the direction of the force (e.g., pulling down on the rope lifts the load up).

- Mechanical Advantage (MA) = 1: The force required equals the weight of the load, as it only changes direction without reducing effort.

Example: Flagpoles, window blinds, or simple hoists where direction change is needed without force multiplication.

2. Movable Pulley (Single Movable Pulley)

Design: The pulley is attached to the load itself, and the axle moves with the load when the rope is pulled.

How It Works:

- The rope is fixed at one end, and the force is applied to the other end.

- Mechanical Advantage (MA) = 2: The force required is half the load weight, as the load is supported by two rope segments.

Example: Construction hoists or garage door systems, where reducing lifting force is essential.

3. Compound Pulley (Pulley System or Block and Tackle)

Design: A combination of fixed and movable pulleys, creating a system with multiple rope segments supporting the load.

How It Works:

- Each additional movable pulley increases the mechanical advantage.

- MA Calculation: Count the number of supporting rope segments (n); MA = n.

- - Example: A 3-pulley system with 4 supporting ropes has MA = 4, reducing the required force to 1/4 of the load weight.

Example: Shipyard cranes, heavy machinery lifts, or rock climbing equipment for extreme load reduction.

4. Belt Pulley (for Power Transmission)

Design: Used in machinery to transfer rotational motion between shafts, using belts (V-belts, flat belts, timing belts).

How It Works:

- The driving pulley (connected to a motor) rotates, pulling the belt and driving the driven pulley.

Speed Ratio: Determined by pulley diameters:

(A smaller driving pulley increases the speed of the driven pulley, and vice versa for torque multiplication).

Example: Car engines (to drive alternators, water pumps), conveyor belts, or industrial machinery.

5. Conveyor Pulley

Design: Large-diameter pulleys used in belt conveyor systems to move materials (e.g., in mines, factories, or airports).

Key Features:

- Grooved or smooth rims to grip the conveyor belt.

- Powered pulleys (drive pulleys) provide the motion, while idler pulleys guide and tension the belt.

The Mechanics of Mechanical Advantage in Pulleys

How Mechanical Advantage Works

Mechanical advantage (MA) in pulleys is determined by the number of load-bearing rope segments supporting the load:

For Fixed Pulleys: MA = 1 (no force reduction, only direction change).

For Movable Pulleys: MA = 2 (force halved, distance doubled).

For Pulley Systems: MA = number of supporting ropes (e.g., 3 ropes = MA = 3).

Formula for Ideal Mechanical Advantage (IMA)

Where n is the number of rope segments supporting the load. In reality, friction and rope weight reduce the actual mechanical advantage (AMA), so AMA < IMA.

Work Conservation Principle

Pulleys obey the law of conservation of work: the work done by the input force equals the work done on the load:

While pulleys reduce the required force, they increase the distance over which the force must be applied (e.g., lifting a 100kg load with MA=2 requires pulling 2 meters of rope for every 1 meter the load rises).

custom shenzhen aluminum zinc die casting cast iron casting stainless steel flywheel 100kg pulley

Real-World Applications of Pulleys

1. Construction and Heavy Machinery

Cranes and Hoists: Use compound pulley systems to lift tons of steel or concrete with minimal effort.

Elevators: Rely on steel cables and large pulleys to move cabins smoothly and safely, with counterweights to balance loads.

2. Transportation and Logistics

Conveyor Belts: Move packages in warehouses, luggage in airports, or raw materials in factories using belt pulleys.

Vehicle Engines: V-belts and timing pulleys transmit power from the engine to accessories like the alternator, air conditioning compressor, and water pump.

3. Everyday Tools and Equipment

Flagpoles: Fixed pulleys make raising and lowering flags easy.

Home Gyms: Pulley systems in weight machines allow adjustable resistance and smooth motion for exercises like cable curls or lat pulldowns.

Window Blinds: Miniature pulleys help raise and lower blinds with a single cord.

4. Marine and Industrial Use

Ships and Boats: Block and tackle systems (compound pulleys) assist in hoisting sails, anchors, or cargo.

Mining Equipment: Large conveyor pulleys transport ore and minerals over long distances in mines.

5. Renewable Energy

Wind Turbines: Use pulleys and belts to transfer rotational motion from the turbine blades to the generator, though gearboxes are more common for high torque.

Solar Trackers: Pulley systems adjust the angle of solar panels to follow the sun, optimizing energy capture.

Advantages and Limitations of Pulleys

Key Advantages:

Force Reduction: Movable pulleys and pulley systems drastically reduce the effort needed to lift heavy loads.

Directional Flexibility: Fixed pulleys change force direction, making tasks like pulling downward to lift upward possible.

Simple Design: Easy to install and maintain, with few moving parts (ideal for both low-tech and high-tech applications).

Versatility: Adaptable to various loads, from tiny window blinds to massive construction cranes.

Common Limitations:

Friction Loss: Real-world pulleys lose efficiency due to axle friction and rope stretch, reducing actual mechanical advantage.

Space Requirement: Compound pulley systems require more vertical or horizontal space to accommodate the extra rope length.

Load Limitations: Very heavy loads may require thick, heavy ropes that increase friction and reduce efficiency.

Speed Tradeoff: While pulleys reduce force, they may decrease the speed of load movement (e.g., lifting slowly with a high-MA system).

Maintaining Pulley Systems for Optimal Performance

1. Regular Lubrication

Axle Bearings: Apply grease or lubricating oil to reduce friction, especially in heavy-duty pulleys (e.g., crane pulleys).

Rope/Cable Care: Inspect for fraying or wear; use rope protectors in high-friction areas.

2. Alignment Checks

Belt Pulleys: Ensure pulleys are aligned to prevent belt slippage or premature wear (critical in machinery like car engines).

Compound Systems: Verify that all pulleys rotate freely and ropes sit correctly in the grooves.

3. Load Capacity Adherence

Never Overload: Respect the maximum load rating of pulleys and ropes to avoid catastrophic failure (e.g., in elevators or construction hoists).

4. Wear and Tear Inspection

Check for Damage: Look for cracked pulleys, bent axles, or stretched belts/ropes. Replace worn components immediately to prevent accidents.

Conclusion: The Timeless Utility of Pulleys

From the simplest flagpole pulley to the complex block and tackle systems of modern cranes, pulleys demonstrate how elegant mechanical design can solve fundamental engineering challenges. By leveraging the principles of mechanical advantage and force redirection, they make the impossible possible—lifting massive weights with minimal effort, transmitting power across vast distances, and enabling smooth motion in countless applications.

Understanding how pulleys work not only highlights their historical significance but also their continued relevance in today’s technology-driven world. Whether you’re designing a industrial conveyor system, fixing a home pulley-based tool, or simply raising a flag, the pulley’s ability to simplify work remains unmatched. By maintaining their components and respecting their limitations, you can ensure these versatile devices serve reliably for years, proving that sometimes the oldest solutions are still the best.

So the next time you see a crane towering over a construction site or use a gym machine to lift weights, remember the humble pulley—quietly working behind the scenes to make heavy loads feel light and complex motions feel effortless.
