How Automatic Gear Transmission Works？

Automatic gear transmission is a marvel of mechanical engineering that has revolutionized driving by eliminating the need for manual gear shifting. Whether you're cruising on the highway or navigating city traffic, the automatic transmission seamlessly adjusts gear ratios to optimize power, efficiency, and smoothness. But how does this complex system actually work? In this guide, we'll break down the core components, operating principles, and different types of automatic transmissions, revealing the engineering magic behind one of the most iconic automotive innovations.

Understanding the Basics of Automatic Transmission

What Is an Automatic Transmission?

An automatic transmission (AT) is a powertrain component that transfers engine power to the wheels by automatically selecting the appropriate gear ratio based on driving conditions. Unlike manual transmissions—where the driver manually engages clutches and shifts gears—automatics use sensors, hydraulic systems, and electronic controls to manage gear changes without driver input. Key goals include:

Smooth Gear Changes: Eliminating jerks or 顿挫 during acceleration or deceleration.

Optimal Performance: Matching engine speed (RPM) to road speed for maximum power or fuel efficiency.

Torque Multiplication: Enhancing low-speed driving by increasing torque at the wheels when needed.

Core Functions of an Automatic Transmission

Gear Ratio Adjustment: Changes between low gears (for acceleration) and high gears (for cruising) to keep the engine in its optimal RPM range.

Torque Conversion: Uses a torque converter (in traditional ATs) to transmit power from the engine to the transmission, allowing slippage during stops.

Neutral and Park Functions: Engages "Park" to lock the drivetrain when parked and "Neutral" to disconnect power transmission.

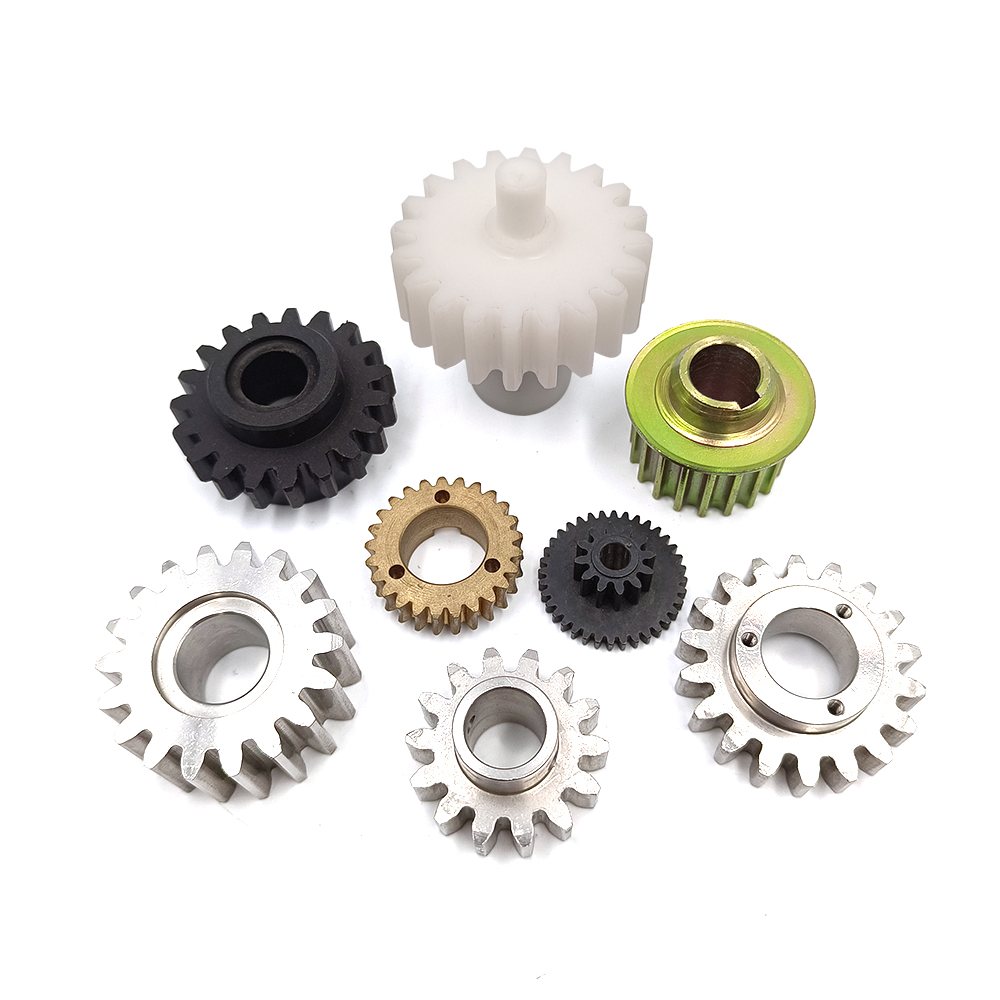

Custom Gear Machining Plastic Aluminum Brass Stainless Steel Straight Spur Helical Bevel Worm Pinion Gear for Transmission Part

Key Components of a Traditional Automatic Transmission (Hydraulic AT)

1. Torque Converter: The Power Coupler

The torque converter replaces the manual clutch and performs three critical roles:

Fluid Coupling: Transmits engine torque to the transmission using automatic transmission fluid (ATF), allowing the engine to idle while the vehicle is stationary.

Torque Multiplication: Uses a stator to multiply torque by up to 2-3 times during acceleration, improving low-speed performance.

Shock Absorption: Dampens vibrations between the engine and transmission, enhancing smoothness.

How It Works:

Pump (Impeller): Connected to the engine, spins and pushes ATF into the turbine.

Turbine: Connected to the transmission input shaft, rotates as the ATF hits its blades.

Stator: A stationary vane between pump and turbine that redirects fluid flow to increase torque during low-speed operation.

2. Planetary Gear Set: The Gear Ratio Mechanism

The heart of gear selection, the planetary gear set consists of:

Sun Gear: A central gear connected to the input shaft.

Planetary Gears: Multiple gears mounted on a carrier, which mesh with the sun gear and ring gear.

Ring Gear: A hollow outer gear that encloses the planetary gears.

By locking or releasing different components (sun gear, carrier, ring gear) using clutches and brakes, the transmission creates various gear ratios:

Low Gear (1st Gear): Fixes the ring gear to maximize torque.

Overdrive (High Gear): Lets the carrier drive the sun gear for fuel-efficient high-speed cruising.

3. Hydraulic System: The Muscle Behind Shifting

A network of pumps, valves, and solenoids controls fluid pressure to engage/disengage clutches and brakes in the planetary gear set:

Oil Pump: Driven by the torque converter, generates hydraulic pressure from ATF.

Valve Body: Contains precision valves that direct fluid to specific clutches/brakes based on shift commands.

Solenoids: Electromagnetic valves controlled by the transmission control unit (TCU), which open/close to regulate fluid flow for shifting.

4. Electronic Control Unit (ECU/TCU): The Brain

The transmission control unit (TCU) or engine control unit (ECU) processes data from sensors to decide when and how to shift:

Input Sensors: Monitor engine RPM, vehicle speed, throttle position, gear selector position (P/R/N/D), and temperature.

Shift Strategy: Uses pre-programmed algorithms to optimize shifts for performance, efficiency, or sport mode, adjusting for factors like load, incline, and driving style.

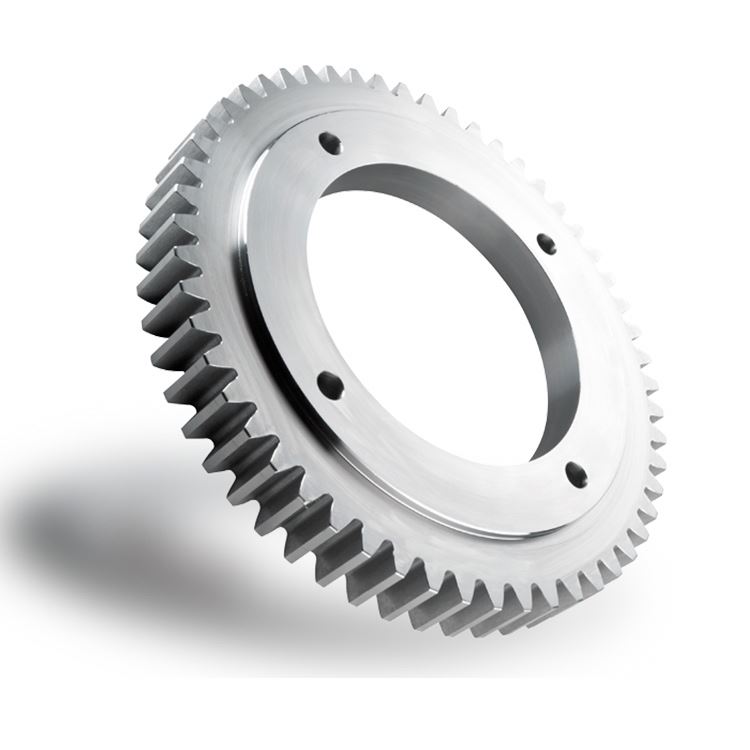

Transmission Gear Hobbing

The Step-by-Step Working Process of an Automatic Transmission

1. Starting the Vehicle (Park to Drive)

When the driver selects "Drive," the TCU signals the hydraulic system to engage the appropriate clutches for 1st gear.

The torque converter begins transmitting power from the engine to the transmission, but minimal fluid flow keeps the vehicle stationary until the throttle is pressed.

2. Low-Speed Acceleration (1st to 2nd Gear)

As the driver accelerates, the throttle position sensor (TPS) and RPM sensor tell the TCU that more power is needed.

The TCU commands the solenoids to increase pressure on the 1st gear clutch and release it gradually while engaging the 2nd gear clutch, using the planetary gear set to shift to a higher ratio.

The torque converter's stator allows torque multiplication, helping the engine overcome inertia without stalling.

3. Highway Cruising (Overdrive Gear)

At high speeds, the TCU shifts into overdrive (e.g., 5th, 6th, or even 10th gear in modern transmissions), where the output speed exceeds the input speed (gear ratio < 1:1).

This lowers engine RPM, reducing fuel consumption and noise while maintaining sufficient power for steady speed.

4. Deceleration and Downshifting

When braking or releasing the throttle, the TCU detects a drop in vehicle speed and engine load.

It initiates downshifting by engaging lower-gear clutches, using engine compression to assist braking and preparing the transmission for the next acceleration.

5. Parking and Neutral

In "Park," a mechanical pawl locks the ring gear of the planetary gear set, preventing the driveshaft from rotating.

In "Neutral," all clutches and brakes disengage, allowing the engine to run without transmitting power to the wheels.

Different Types of Automatic Transmissions and Their Working Principles

1. Hydraulic Automatic Transmission (AT)

Pros: Durable, proven technology, excellent for high-torque engines (e.g., trucks, SUVs).

Cons: Slightly lower efficiency due to torque converter slippage, slower shifts compared to newer designs.

Key Difference: Relies on planetary gear sets and hydraulic controls, as described earlier.

2. Dual-Clutch Transmission (DCT/DSG)

Core Design: Uses two separate clutches—one for odd gears (1, 3, 5) and one for even gears (2, 4, 6)—and a manual-like gearbox.

How It Works:

- While driving in 1st gear, the 2nd gear is pre-selected but not engaged.

- When shifting, Clutch 1 disengages, and Clutch 2 engages instantly, transferring power to the pre-selected gear.

Pros: Extremely fast shifts (milliseconds), higher efficiency, sporty performance.

Cons: Complex design, less suitable for heavy-duty low-speed stop-and-go traffic (e.g., city driving).

3. Continuously Variable Transmission (CVT)

Unique Mechanism: Replaces fixed gears with a belt/pulley or chain system that allows infinite gear ratios between minimum and maximum.

Working Principle:

- Two variable-width pulleys (driven and driven) connected by a belt/chain.

- The engine pulley (primary) adjusts its diameter based on speed: smaller for low speed (high torque), larger for high speed (low RPM).

Pros: Seamless acceleration (no stepped shifts), optimal fuel efficiency, simple design with fewer moving parts.

Cons: Limited torque capacity (best for small engines), potential belt wear under heavy load, and less "sporty" feel.

4. Automated Manual Transmission (AMT/ASG)

Hybrid Design: Based on a manual transmission but with automatic clutch and shift control (e.g., robotized manual).

How It Works: Uses actuators to press the clutch and move the gear stick, following TCU commands.

Pros: Inexpensive, efficient, lightweight.

Cons: Slower shifts, less smooth than hydraulic AT or DCT, common in budget vehicles.

Advantages and Challenges of Automatic Transmissions

Key Advantages:

Ease of Use: No need to coordinate clutch and gear shifts, ideal for novice drivers or stop-and-go traffic.

Safety: Reduces driver distraction by eliminating manual gear handling.

Optimized Performance: Modern TCUs use real-time data to choose the best gear for fuel efficiency or power.

Smooth Operation: Hydraulic systems and torque converters dampen shocks, improving ride comfort.

Common Challenges:

Complexity: More parts mean higher repair costs and specialized maintenance (e.g., ATF fluid changes).

Weight and Size: Traditional ATs are heavier than manual transmissions, though DCTs and CVTs mitigate this.

Efficiency Loss: Torque converter slippage (in ATs) or belt friction (in CVTs) can reduce fuel efficiency compared to manual gearboxes.

Heat Management: High-speed driving or towing can overheat the transmission, requiring additional cooling systems.

Maintaining Your Automatic Transmission for Optimal Performance

1. Regular Fluid Changes

ATF Role: Lubricates, cools, and transfers power in hydraulic systems. Degraded fluid causes wear and shifting issues.

Interval: Follow manufacturer guidelines (typically 30,000–60,000 miles, but some "sealed for life" transmissions still require inspection).

2. Monitor Temperature

Overheating Risks: Install a transmission temperature gauge (for heavy-duty use) and avoid prolonged idling in hot climates.

Cooling Solutions: Ensure the transmission cooler (a small radiator) is clean and functioning to prevent fluid breakdown.

3. Professional Inspections

Fluid Color Check: Healthy ATF is red/pink and clear; brown/black or burnt-smelling fluid indicates trouble.

Shift Quality: Any delay, jerking, or strange noises (e.g., whining, clunking) signals potential issues with clutches, valves, or gears.

4. Drive Responsibly

Avoid Lugging: Let the transmission shift naturally; don’t force downshifting for engine braking unless necessary (except in sport modes).

Towing Tips: Use "Tow/Haul" mode (if available) to prevent overheating by adjusting shift points for heavy loads.

Conclusion: The Engineering Marvel of Seamless Shifting

Automatic gear transmission is a testament to how mechanical ingenuity, hydraulic precision, and electronic intelligence can transform a cumbersome manual process into a smooth, intuitive experience. Whether it's the torque-converter magic of traditional ATs, the lightning-fast shifts of DCTs, or the infinite ratios of CVTs, each type of automatic transmission solves specific driving needs while pushing the boundaries of efficiency and performance.

Understanding how these systems work not only deepens your appreciation for automotive engineering but also helps you maintain your vehicle better. By respecting their limitations—managing heat, using the right fluids, and avoiding abusive driving—you can ensure your automatic transmission serves you reliably for years, delivering the convenience and performance that made it a staple of modern motoring.

So the next time you shift into "Drive" and feel the vehicle accelerate effortlessly, remember: beneath the surface, a symphony of gears, fluids, and electronics is hard at work, all orchestrated by a tiny computer that knows exactly when to shift—so you don't have to.
