Non standard reducer gear, motor gear, small module gear suitable for various fields

00008

minimum order

1 piece

Country of Origin

shanghai

Quantity

Contact Now

Condition:New
Warranty:6 Months
Shape:Ring Gear
Applicable Industries:Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction works , Energy & Mining, Other
Weight (KG):3
Showroom Location:None
Video outgoing-inspection:Provided
Machinery Test Report:Provided
Marketing Type:New Product 2020
Warranty of core components:6 Months
Core Components:Gear
Standard or Nonstandard:Nonstandard
Tooth Profile:straight teeth
Material:Iron
Processing:Forging
Pressure Angle:forging
Place of Origin:Anhui, China
Brand Name:Yafei
Size:Customized

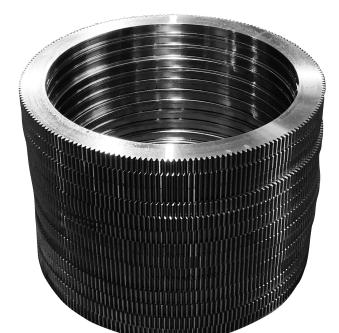

Product Overview

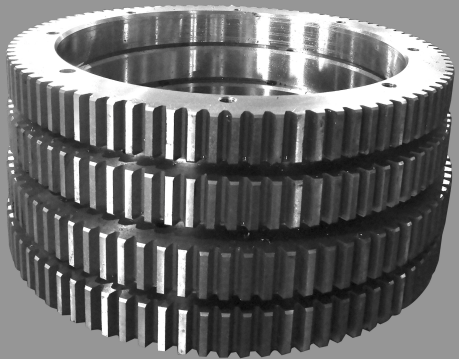

型号YF--齿圈

In terms of hardware facilities, the gear can meet the production of cylindrical gears with a maximum of 2000mm and a maximum modulus of 22m. The products are widely used in ships, mines, metallurgy, electric power, papermaking, chemical machinery and other fields.

parameter	unit	standard
modulus	m	5
Number of teeth	z	212
pressure angle	ɑ	20︒
Accuracy class		8
Full tooth height	h	11.25
Radial runout tolerance of ring gear	Fr	0.1
Common normal length variation tolerance	Fw	0.08
Common normal length	W	361.72
Number of cross measuring teeth	n	24
Displacement coefficient	x	0

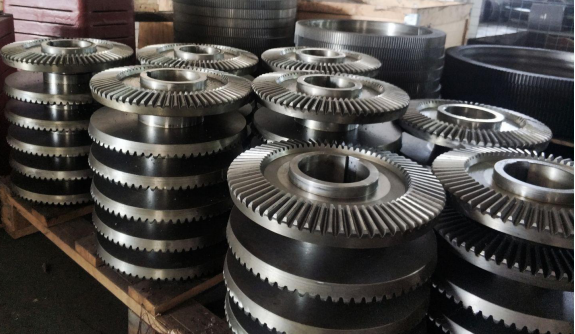

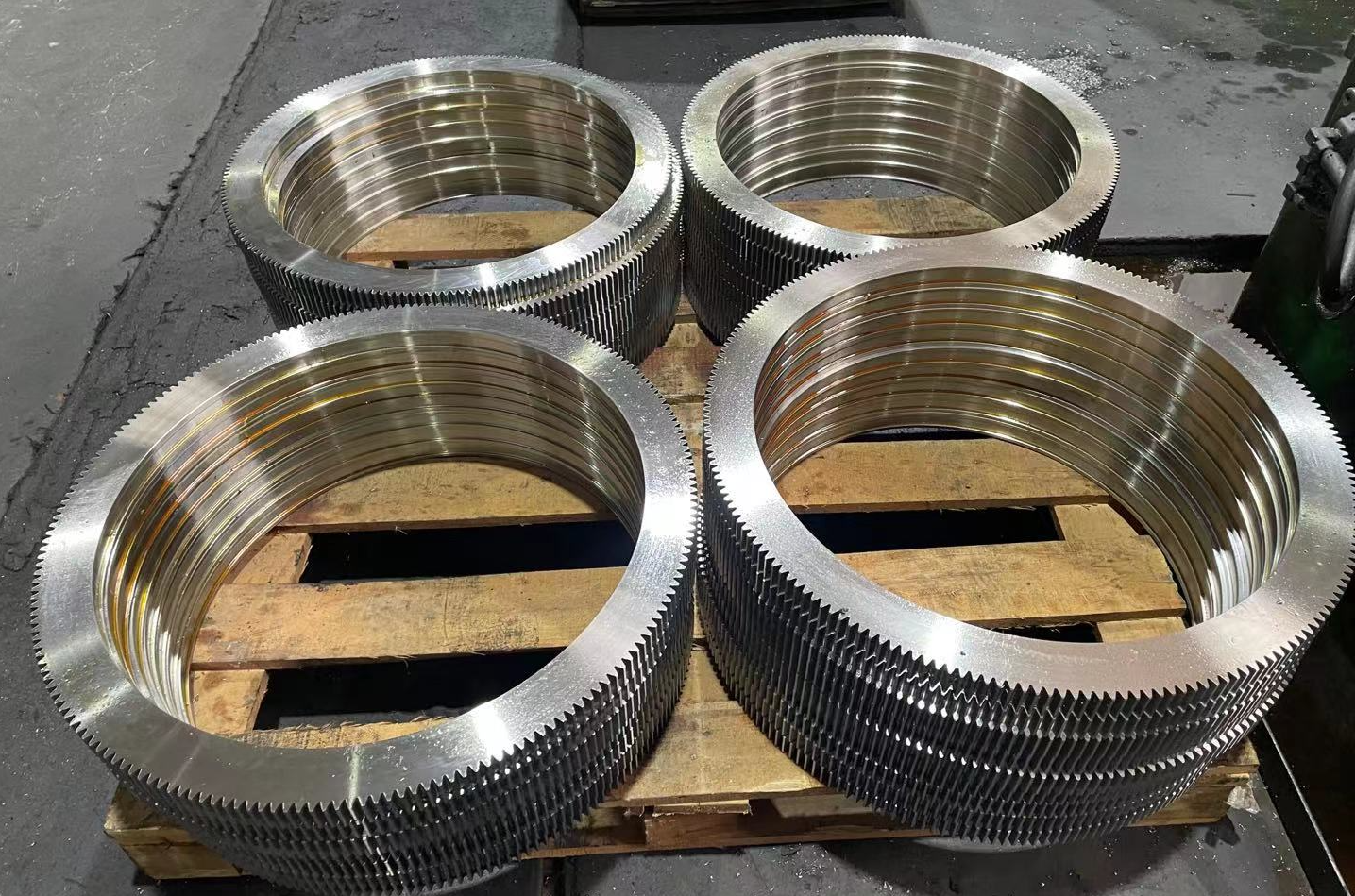

APPLICATION

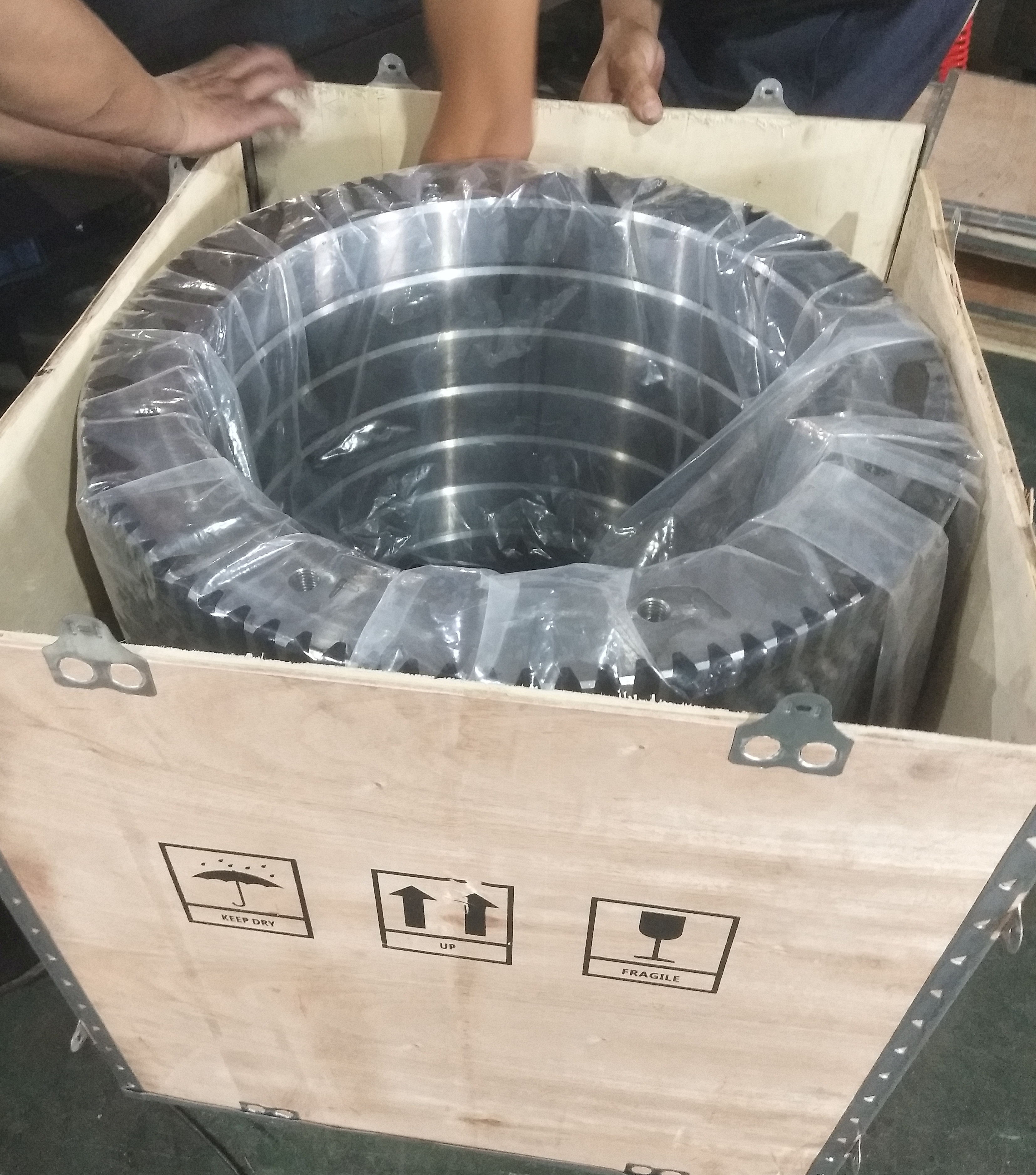

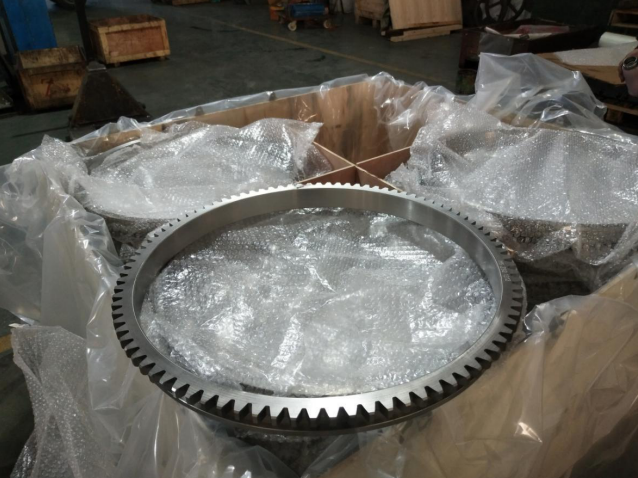

Product packaging

Packaging can be provided according to customer needs

Our Advantages

Non standard customization,OEM, ODM, single piece Factory direct selling, affordable, fast delivery Specialized in making gears
for 21 years, and more than 60% of the technicians have more than 15 years. Technically, they can meet the customization of any
demand

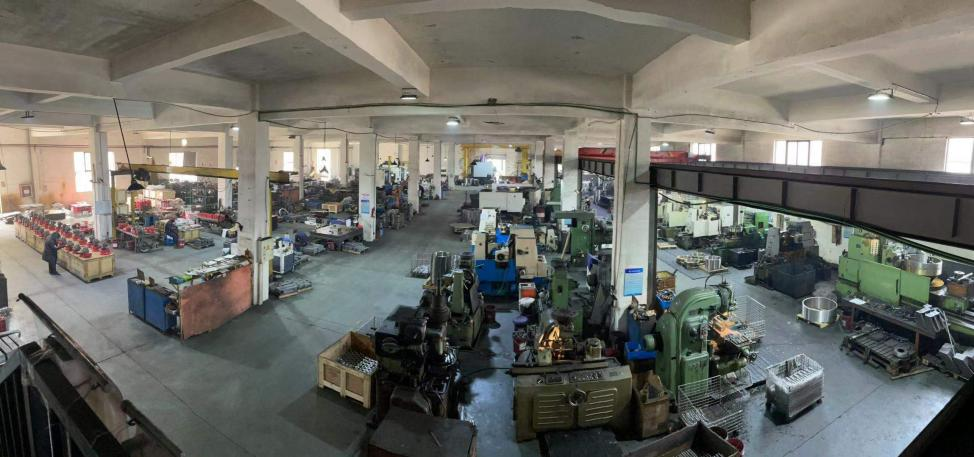

Company Profile

Hangzhou Yafei Machinery Manufacturing Co., Ltd., founded in 2001, is mainly engaged in the production and processing of gears,gear rings, reducer accessories and reducer machines. It has more than 100 sets of gear production, processing and testingequipment. In terms of hardware facilities, it can meet the production of cylindrical gears with a maximum of 2000mm and a maximummodulus of 22m. The products are widely used in ships, mines, metallurgy, electric power, papermaking, chemical machinery andother fields. The products are exported to the United States, Japan, South Korea, Italy, India and other countries, and have won wide praise from customers with excellent quality and service.

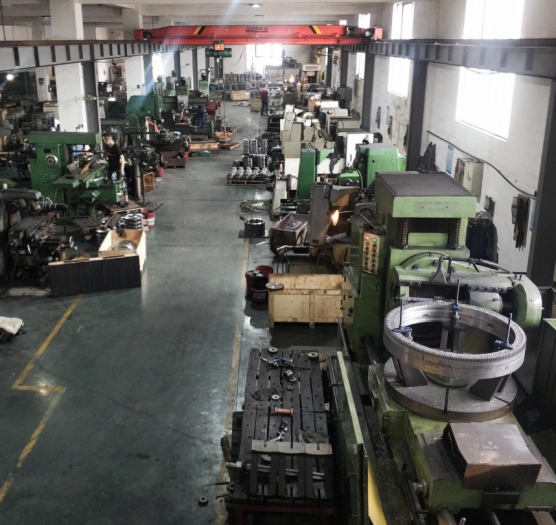

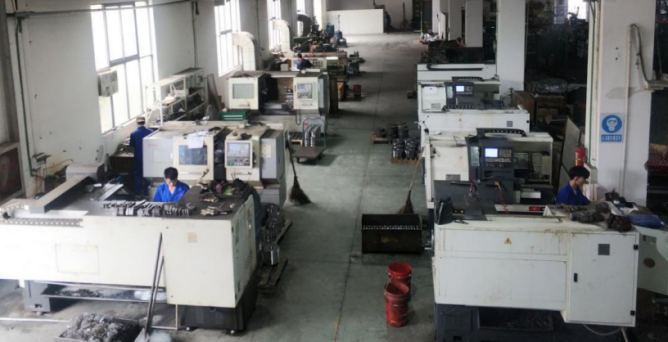

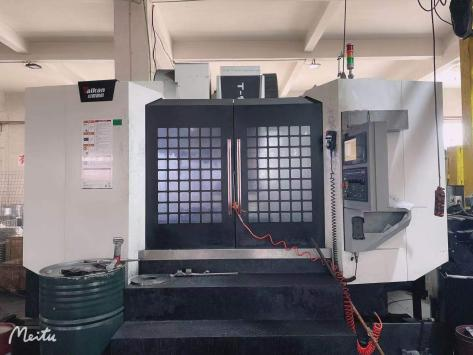

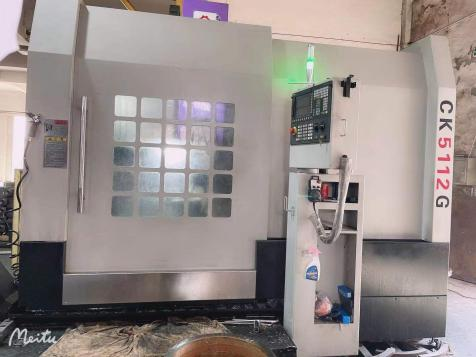

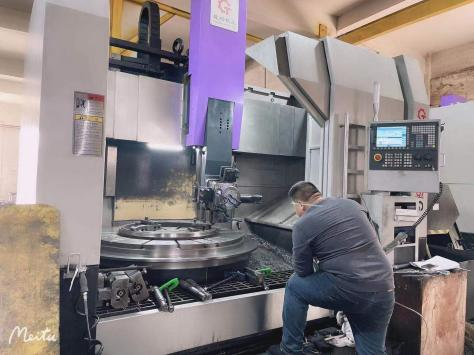

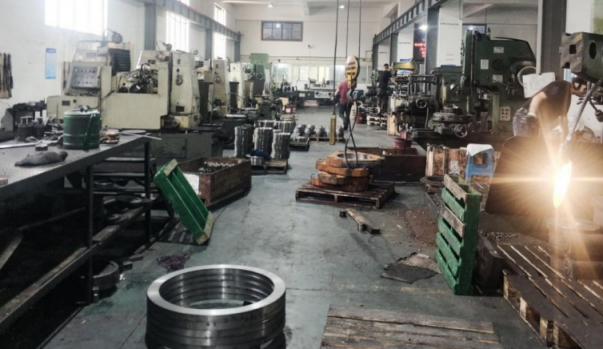

Manufacturing Technique
