Harmonic Circular Spline



The Harmonic Circular Spline is a versatile component that ensures precision and control in rotational applications. It is built with high-efficiency harmonic drive technology that eliminates backlash and provides a high torque-to-weight ratio. The circular spline is ideal for numerous industries like robotics, aerospace, and automotive due to its exceptional reliability and performance. It can facilitate smooth motion, allowing for smooth, low-noise operation. This tool can eliminate motion variability and ensure accurate positioning for high-precision applications. With this circular spline, users can expect maximum efficiency, durability, and performance in their operations.



Harmonic Reducer and Harmonic Circular Spline are two important components in mechanical engineering. A Harmonic Reducer is a type of gear reduction mechanism that utilizes an elliptical or harmonic gear design to achieve a high reduction ratio in a small package size. It is often used in robotics, machinery, and automation applications where high precision and high torque requirements are essential. The unique design of the Harmonic Reducer ensures a zero-backlash operation as well as long-term stability and reliability.

On the other hand, a Harmonic Circular Spline is a component that is used to transfer torque and motion between two rotating elements. It is composed of an external ring or spline and an internal flexspline, which are designed with a series of precision-machined teeth that fit together in a specific pattern. The Harmonic Circular Spline offers several benefits over traditional gear systems, including high load capacity, zero-backlash operation, and flexibility in positioning.

Overall, the Harmonic Reducer and Harmonic Circular Spline are two critical components that enable precise and optimized performance in a wide range of mechanical systems.

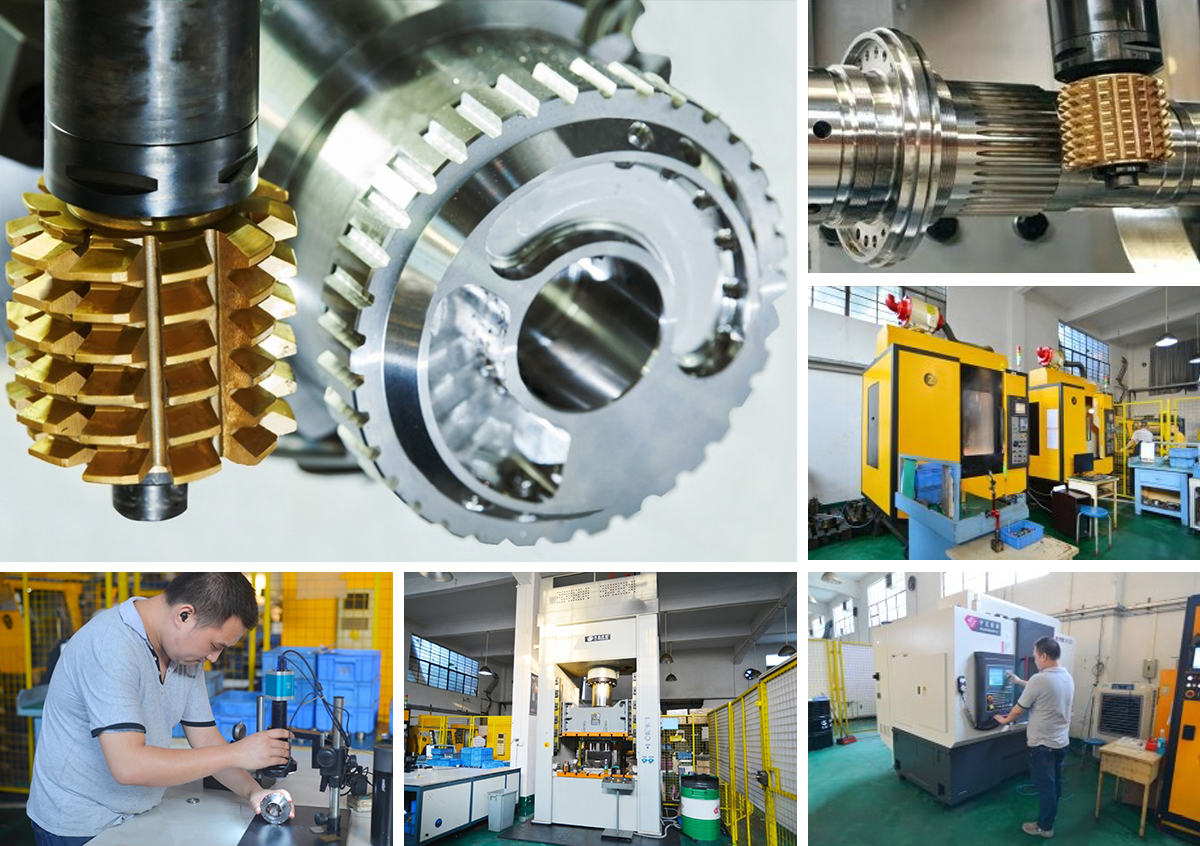

Hansheng Automation focuses on the processing of various types of small modulus straight teeth, helical teeth, bevel teeth, splines, and flexible wheels and steel wheels for harmonic reducers used in industrial robots, as well as supporting our factory's dedicated heat treatment equipment to ensure the provision of high-quality gear products.

Every product is meticulously crafted. We strive for quality and excellence, always striving for more perfect products with higher requirements. After years of continuous exploration and improvement, our products are sold both domestically and internationally, meeting various personalized needs in multiple fields. Hansheng will uphold the high quality service values and provide you with high-quality solutions.





Q: What is Harmonic Reducer?
A: Harmonic Reducer is a mechanical reducer that works by dividing the rotational torque of the transmission shaft into two superimposed waveforms to achieve deceleration. It can achieve advantages such as high torque, high precision, and low noise, and is widely used as a reduction device in industrial production.

Q: What is the difference between a Harmonic Reducer and a regular reducer?
A: Compared to ordinary reducers, the Harmonic Reducer has the characteristics of smooth motion, high transmission accuracy, and low noise. Its transmission efficiency is high, reaching over 95%, and its volume is small, sealing performance is good, and its long-term service life is long.

Q: What is Harmonic Circular Spline? What is its relationship with Harmonic Reducer?
A: The Harmonic Circular Spline is an important component of the Harmonic Reducer, which is a structure similar to a planetary gear used to transmit and convert the angle of power, ensuring the smoothness and accuracy of the entire deceleration process. The design and manufacturing of Harmonic Circular Spline have a significant impact on the performance and lifespan of reducers.

Q: What are the current application areas of Harmonic Reducer?
A: Harmonic Reducer is widely used in industrial robots, CNC machine tools, printing equipment, textile machinery, medical equipment, aerospace and other fields. Its application can improve the production efficiency and operational accuracy of equipment, reduce noise and failure rates, and save energy and costs.

Q: How to choose the appropriate Harmonic Reducer?
A: When selecting Harmonic Reducer, it is necessary to consider the requirements of the application scenario, such as load torque, working speed, usage environment, installation space, and other factors. At the same time, it is also necessary to choose the appropriate Harmonic Reducer model and size according to the needs to ensure its reliability and stability.
