Non standard carbon steel helical gear

001

minimum order

1 piece

Country of Origin

shanghai

Quantity

Contact Now

Condition:New
Warranty:6 Months
Shape:Ring Gear
Applicable Industries:Garment Shops, Manufacturing Plant, Machinery Repair Shops, Energy & Mining
Weight (KG):5
Showroom Location:None
Video outgoing-inspection:Provided
Machinery Test Report:Provided
Marketing Type:New Product 2020
Warranty of core components:6 Months
Core Components:Gear
Standard or Nonstandard:Nonstandard
Material:Iron
Processing:Forging
Pressure Angle:20
Place of Origin:Anhui, China
Brand Name:yafei
Surface Treatment:Galvanizing
MOQ:1 Piece

Product Overview

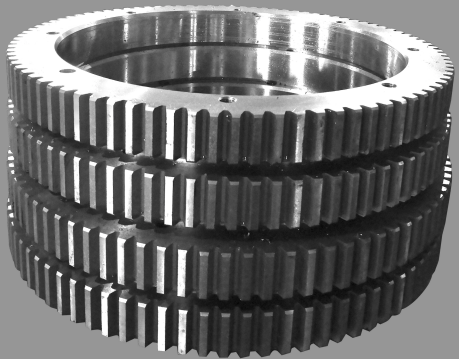

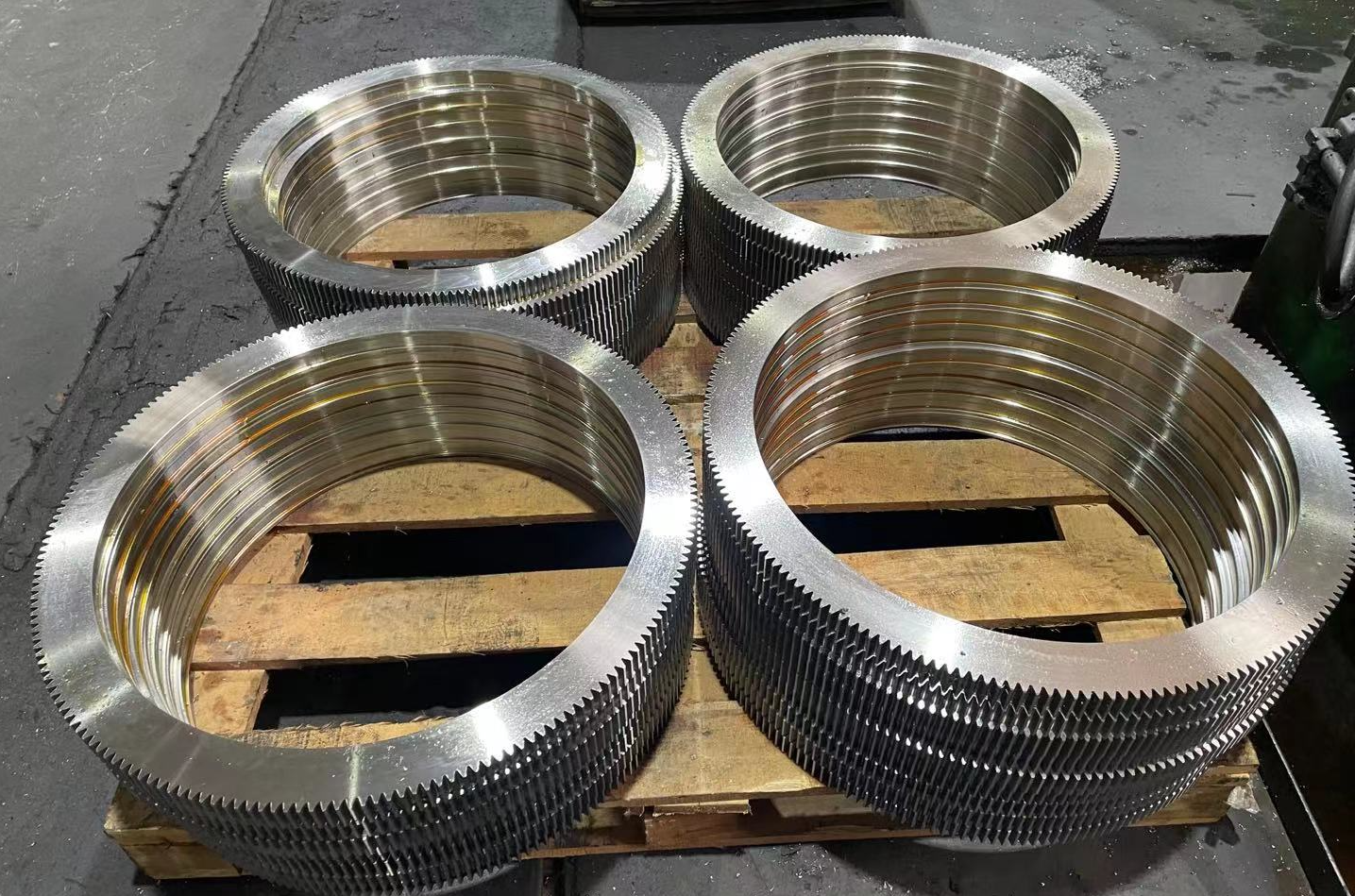

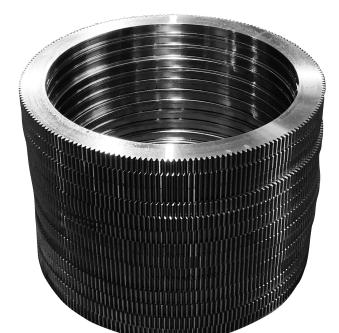

YF--齿圈

In terms of hardware facilities, the gear can meet the production of cylindrical gears with a maximum of 2000mm and a maximum modulus of 22m. The products are widely used in ships, mines, metallurgy, electric power, papermaking, chemical machinery and other fields.

parameter	unit	standard
modulus	m	5
Number of teeth	z	212
pressure angle	ɑ	20︒
Accuracy class		8
Full tooth height	h	11.25
Radial runout tolerance of ring gear	Fr	0.1
Common normal length variation tolerance	Fw	0.08
Common normal length	W	361.72
Number of cross measuring teeth	n	24
Displacement coefficient	x	0

APPLICATION

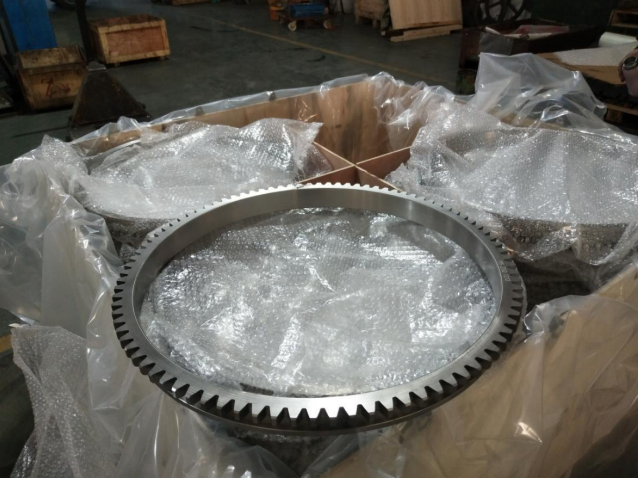

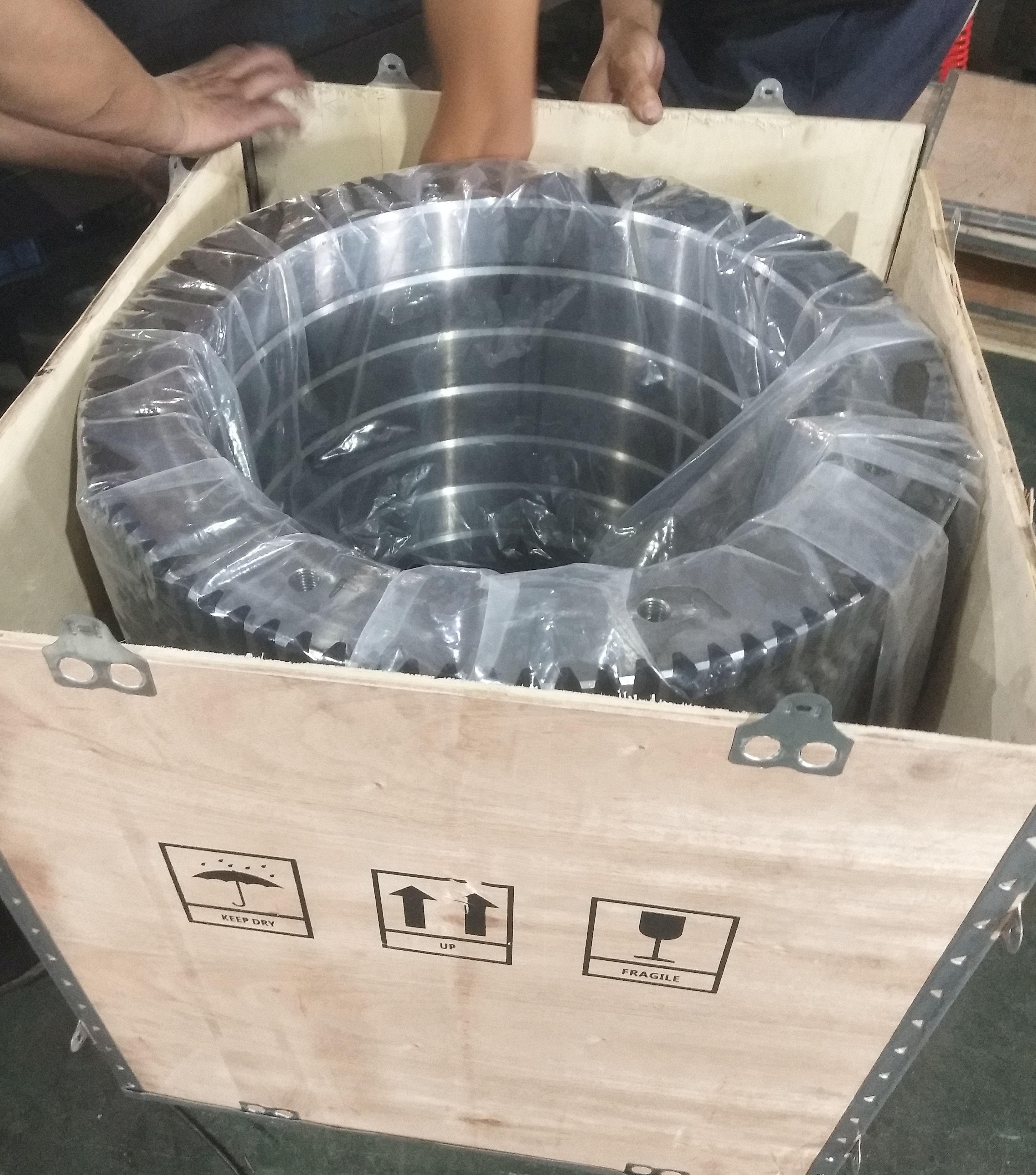

Product packaging

Packaging can be provided according to customer needs

Our Advantages

Non standard customization, OEM, ODM, single piece Factory direct selling, affordable, fast delivery Specialized in making gears for 21 years, and more than 60% of the technicians have more than 15 years. Technically, they can meet the customization of any demand

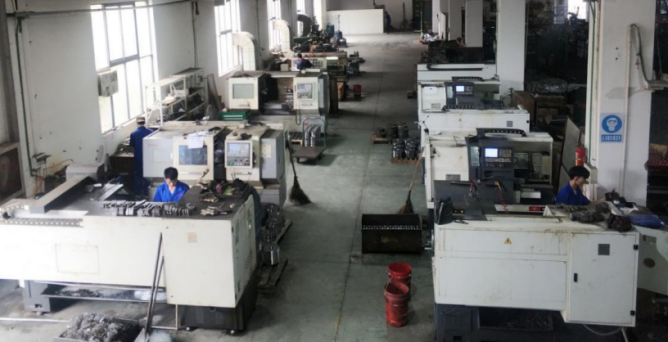

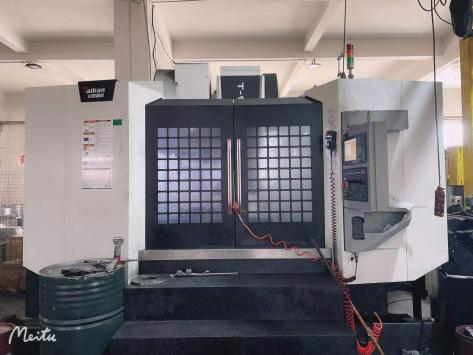

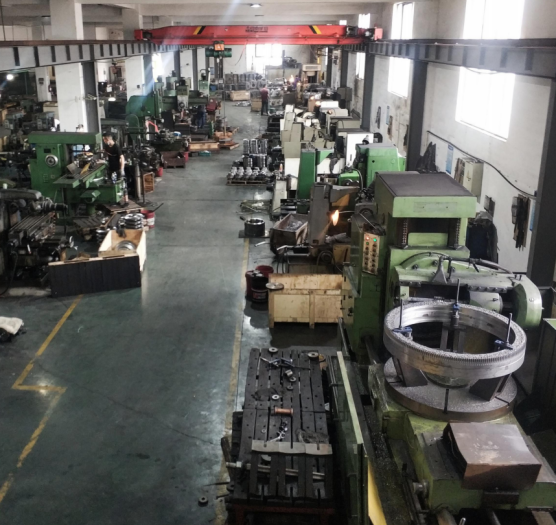

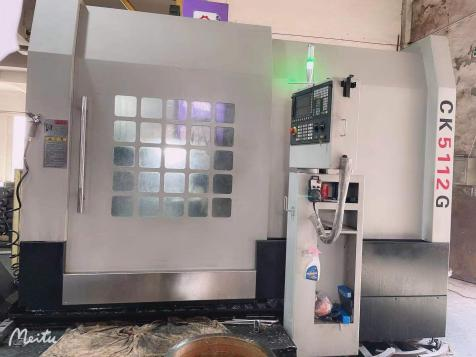

Hangzhou Yafei Machinery Manufacturing Co., Ltd. (formerly Lin'an Feihe Machinery Factory) was established in 2001 and renamed Hangzhou Yafei Machinery Manufacturing Co., Ltd. in 2018. It now covers an area of 3000 square meters. It is mainly engaged in the production, processing and manufacturing of gears, gear rings, reducer accessories and complete reducer. There are more than 50 employees. The company has more than 40 sets of gear production, processing and testing equipment, which can meet the production of cylindrical gears with a maximum of 2000mm and a maximum modulus of 22m in terms of hardware facilities. The products are widely used in ships, mines, metallurgy, electric power, papermaking, chemical machinery and other fields. At present, our products are exported to the United States, Japan, South Korea, Italy, India and other countries, and have won wide praise from customers with excellent quality and service. In 2018, the annual output value of our factory was more than 15 million yuan.

Company Profile
